The Zigzag

Built on the flexible and affordable RAM Promaster chassis with everything you need for four seasons adventure. Bring all your outdoor toys under the rear high platform bed while the latest advances in electrical heating systems keep you comfortable. Fully insulated and featuring waterproof materials throughout. Available in long or short wheelbase.

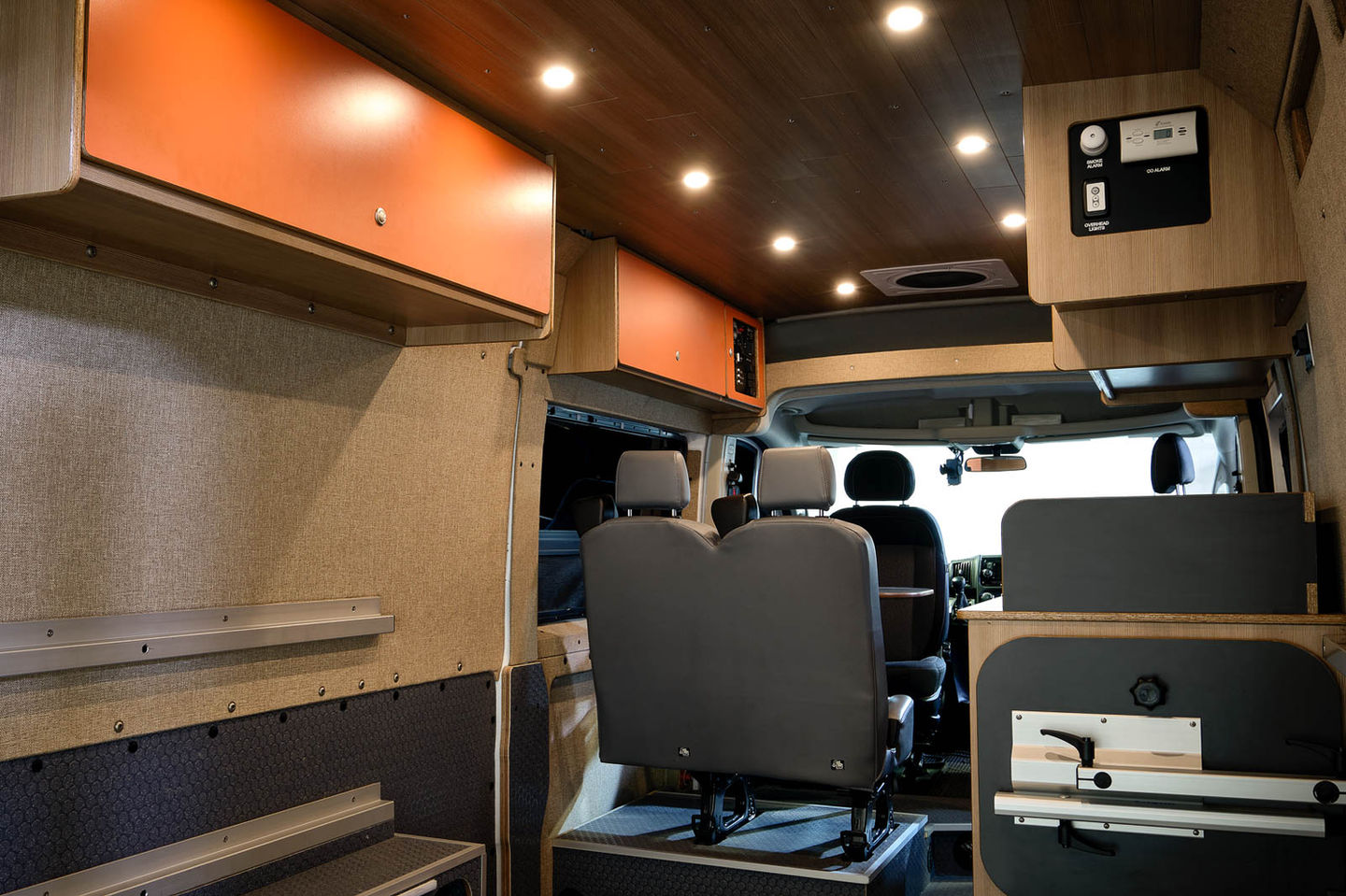

Interior

  • Marine plywood wall panels upholstered in hard-wearing Marathon fabric

  • Laminate woodgrain effect ceiling

  • Removable double second-row passenger seat with integrated shoulder belts

  • Fully insulated walls, ceiling, and floor with bonded custom fit polyiso foam board and 3M Thinsulate

  • Marine plywood subfloor and under bed garage walls with Lonseal marine vinyl flooring

  • Rear two-panel quick-release queen high platform bed (Full-sized width in 136 wheelbase)

  • 5" memory foam mattress

  • Optional front seat swivels (required if the van does not have OEM factory swivel seats)

  • Full-length ceiling and wall cargo track

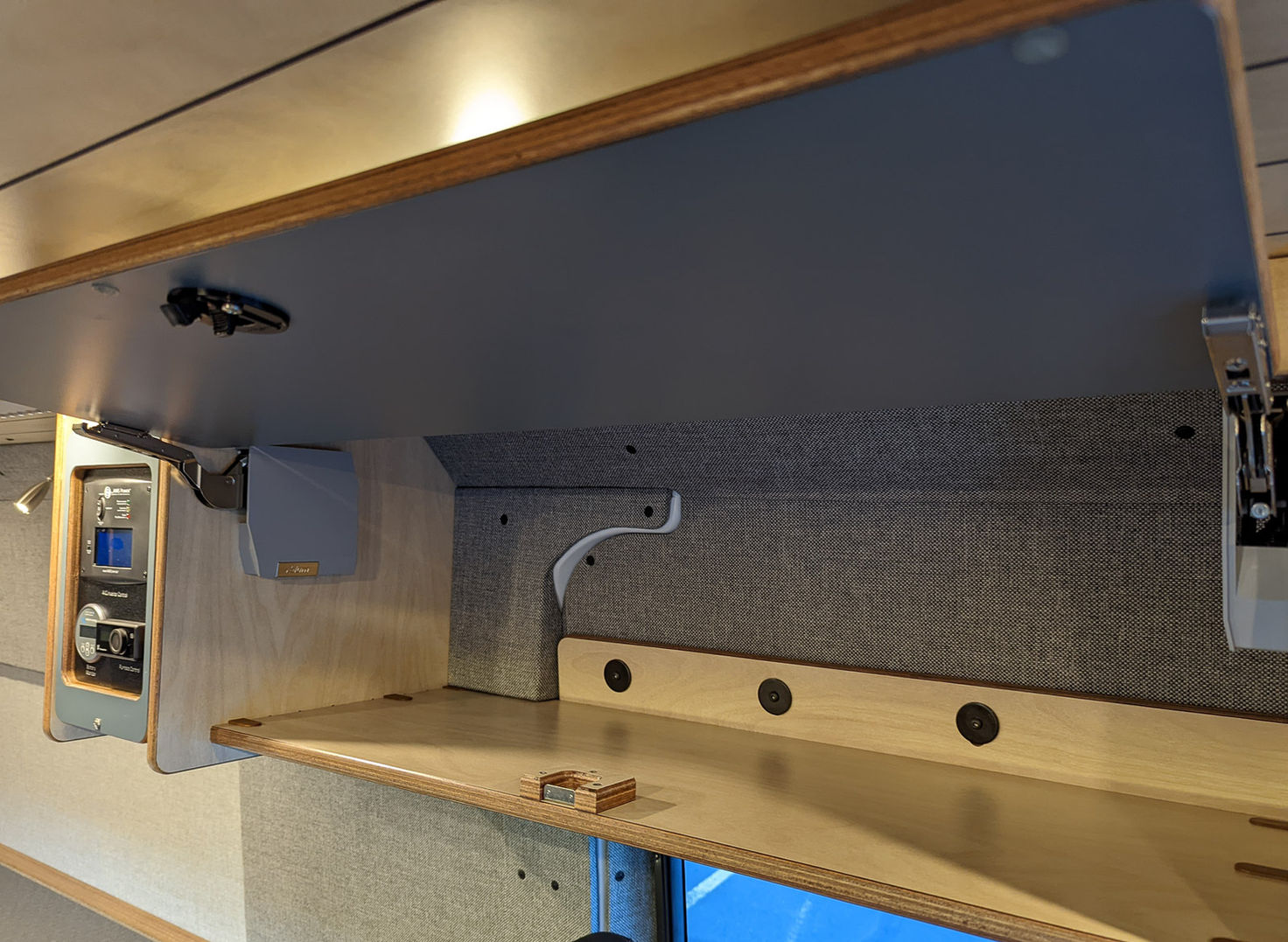

  • Optional quick mounting upper storage cabinets. Marine plywood and laminate construction

  • Knock down dinette table

  • Lagun swivel table for passenger seat

​

Fresh Water System

  • 20 gallon fresh water tank w/12v heating pad

  • 12v water pump, expansion tank and pressure regulator

  • Rear shower point for exterior shower

  • Optional 1.6 gallon 12v/110v water heater

​

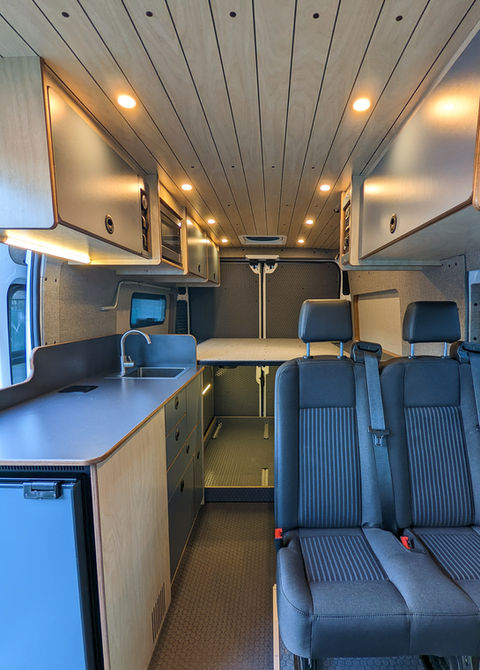

Galley

  • Marine plywood and laminate cabinet construction with finished live plywood edge

  • IndelB 86 liter built in 12v refrigerator/freezer

  • Stainless steel sink with cutting board cover and faucet

  • Drawers with ball bearing slides and slam latch hardware

  • 4 Gallon under sink greywater jug. Under van 12-gallon grey water tank with macerator pump optional

  • Portable 1800w dual burner induction cooktop with storage drawer

  • Dropdown exterior table

  • Optional microwave

  • Popup 110v outlet

Exterior

  • Fiamma roof rack with ABV rack fairing

  • Optional Fiamma rear door ladder

  • Optional Fiamma carry bike folding rear door bike rack

  • Optional CRL T Vent side windows

  • Optional CRL rear awning bunk window

  • Optional CRL rear door fix glass windows



Electrical

  • 200AH or 400AH lithium battery

  • 2500 watt AIMS Power true sine wave inverter charger with auto transfer switch

  • 400 watt solar charging array with Renogy MPPT charge controller (340 watt on 136 wheelbase vans)

  • Victron BMV712 Bluetooth Battery Monitor

  • 50 amp Renogy DC-DC charge controller

  • Premium tinned marine wiring and Blue Sea Systems fuse and breaker panels

  • 30 amp shore power inlet

  • LED overhead and under cabinet lighting

  • LED cargo area lighting

  • LED exterior porch lights

  • Optional front off road driving lights

  • 3 - USB dual charging ports

  • Exterior 110v outlet

  • 2 - 12v power points

​

Options

  • Thetford Curve marine chemical toilet with custom storage cabinet

  • Custom colors and finishes available

  • Under bed pull out cargo drawer with 350lb locking slides.

  • Fiamma F80 shade awning

Build Features and Options
